RAM Motorcycle Brake/Clutch Reservoir & Handlebar Double Ball Base

RAM Motorcycle Brake/Clutch Reservoir & Handlebar Double Ball Base

PRODUCT INFORMATION

Model No :-RAM-B-309-8U

OVERVIEW

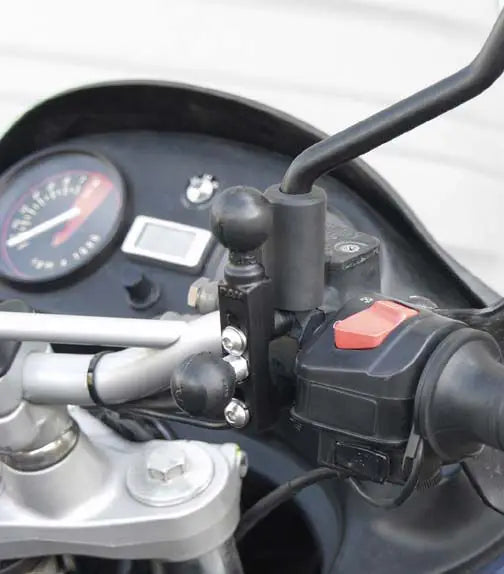

The RAM combination handlebar and brake/clutch reservoir base provides the ultimate flexibility for mounting. Mount to either your handlebar or brake/clutch, almost infinite adjustment and perfect viewing angles are providing in this kit. Standard or metric thread stainless steel bolts, provided in the kit. The zinc coated metal u-bolt accommodates rails in diameter from 0.75" to 1.25" in diameter.

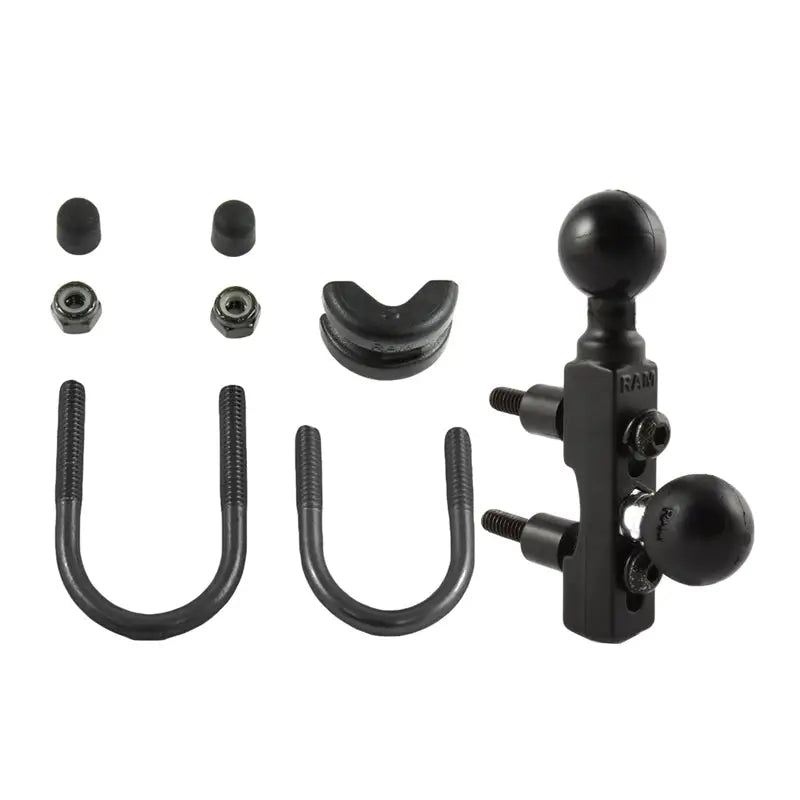

HARDWARE INCLUDED

• Assembly Hardware
• (2) M6 x 55mm Hex Bolts
• (2) #1/4-20 x 2" Hex Bolts
• (2) 1/4"-20 x 2.5" Hex Bolts
• (2) 1/2" Spacers
• (2) 1/4" Split Lock Washers
• (1) 1/4"-20 U-Bolt for .5" - 1" Rails
• (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
• (2) 1/4"-20 Nylock Nuts
• (2) Rubber Caps
• (1) U-Bolt Spacer

CLAMP RANGE

• .5" - 1.25" diameter

BALL/SOCKET SIZE

• B Size (1")

WEIGHT CAPACITY

• Standard Use: 2 lbs
• Heavy-Duty Use: 1 lb

MATERIALS

• Marine-grade aluminum

PACKAGING TYPE

• Poly Bag

WEIGHT

• 0.33 lbs.
