Baja Designs Aux LED - SQUADRON 2.0 SPORT (WITH HARNESS)

Baja Designs Aux LED - SQUADRON 2.0 SPORT (WITH HARNESS)

The upgraded all new Squadron 2.0 Sport delivering 3,200 lumens at 30W each — a 26% performance increase over the previous generation.

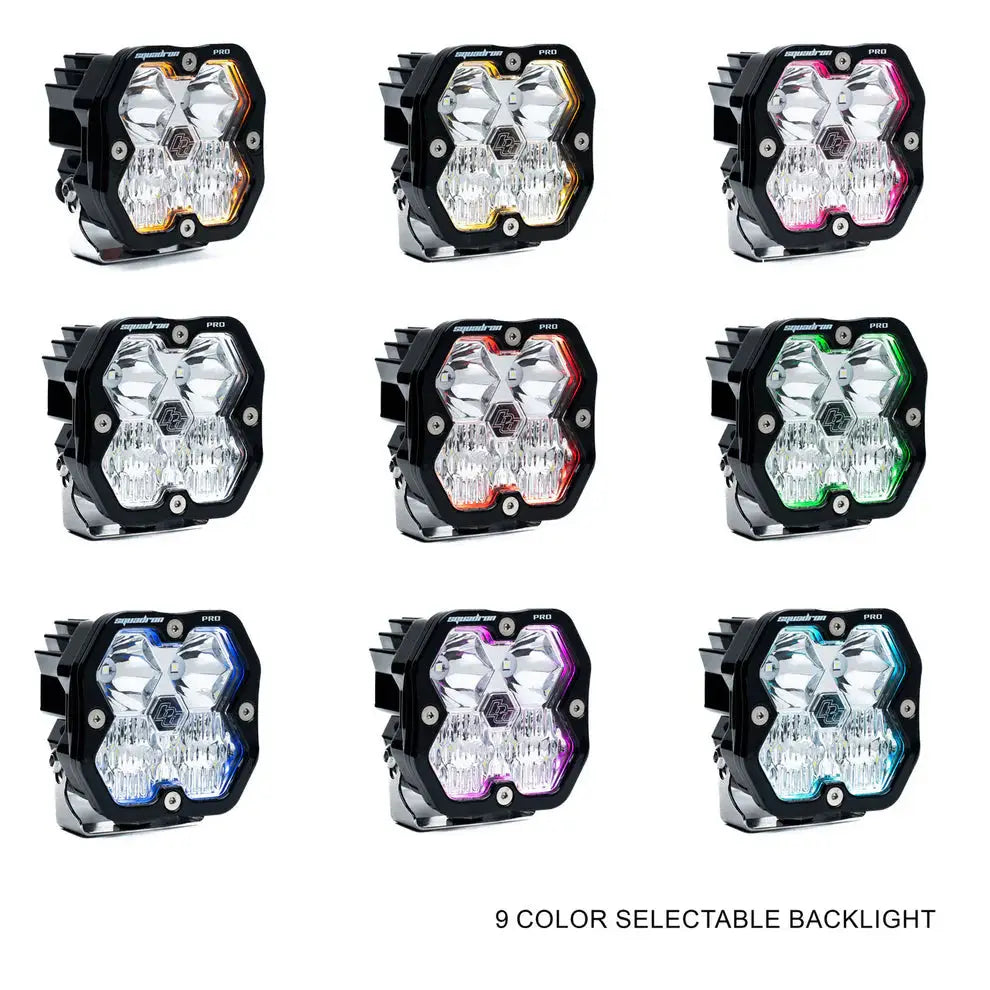

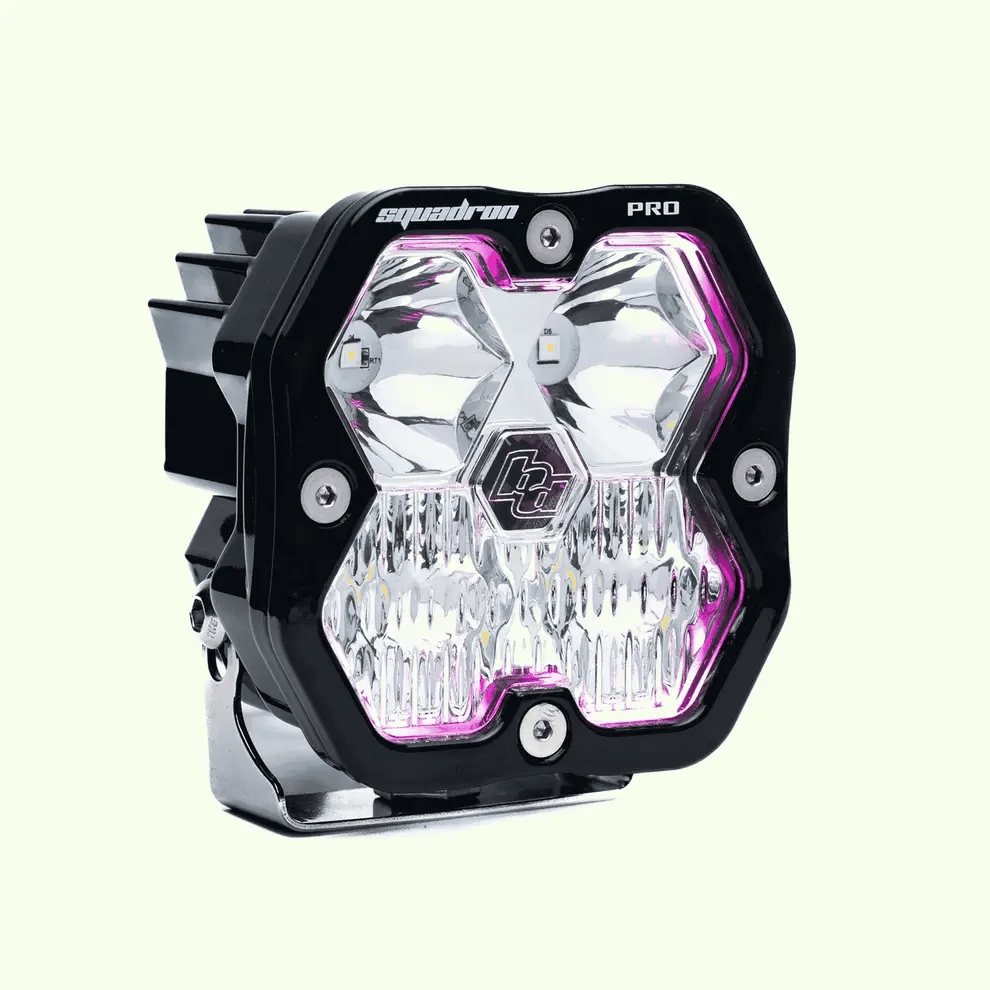

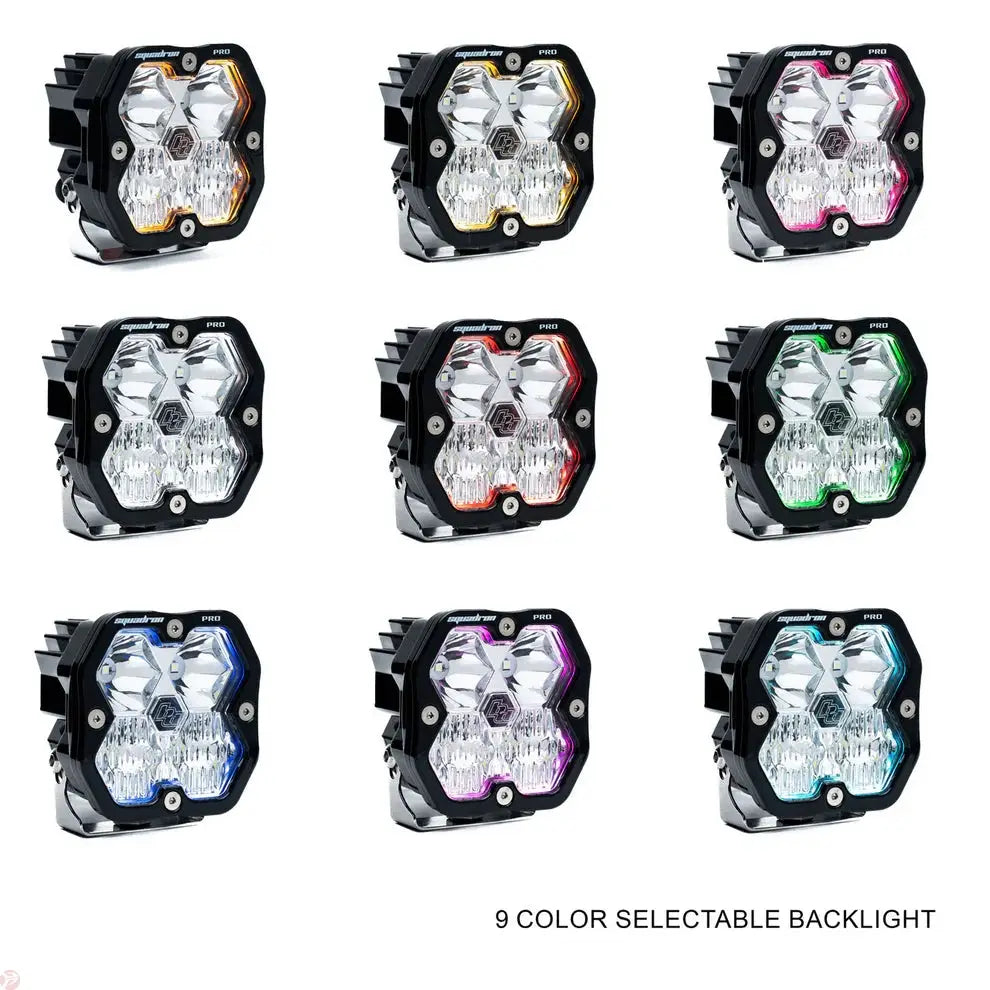

Color Selectable Backlight
The Squadron 2.0 features an integrated 9-color selectal backlight. Drivers can toggle between red, green, blue, magenta, cyan, amber, yellow, pink, and white, all configurable through the included harness. Color settings are retained when the light is powered off, so your setup is always ready when you are.

What's New:

• Refined beam pattern for greater distance, wider coverage, and reduced spill
• 9-color selectable backlight to match your vehicle
• Rugged 4-pin Deutsch connector for wiring durability
• Clip-in reflectors for easier lens changes (uService®)
• Redesigned gasket for superior weather sealing
• New mounting bracket with increased vertical adjustability
• Gloss black aluminum housing

Specs (per light): 3,200 lm | 30W / 5.2A | 5000K Daylight | IP69K | 12–32V

• Lumens: 3,200 | Watts/Amps: 30W/2.2A
• OPERATING VOLTAGE: 12-32V
• DIM: 3.318”(H) X 3.289”(W) X 2.840”(D)

ELS™ Scores:

• Spot Clear: 86° / 6.1 / 454 / 4930
• Driving Combo Clear: 128° / 7.4 / 403 / 4955
• Wide Cornering Clear: 132° / 7.6 / 159 / 4946
• Work/Scene Clear: 148° / 8.0 / 64 / 4575

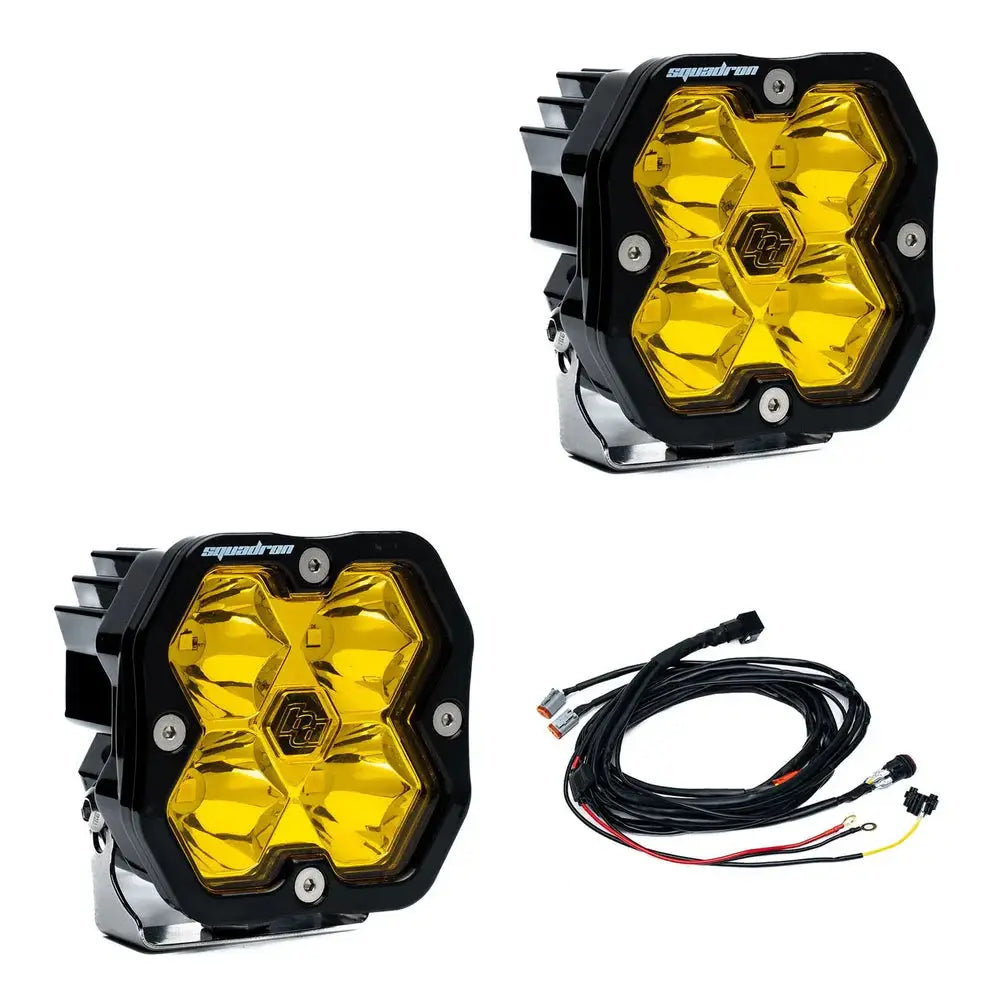

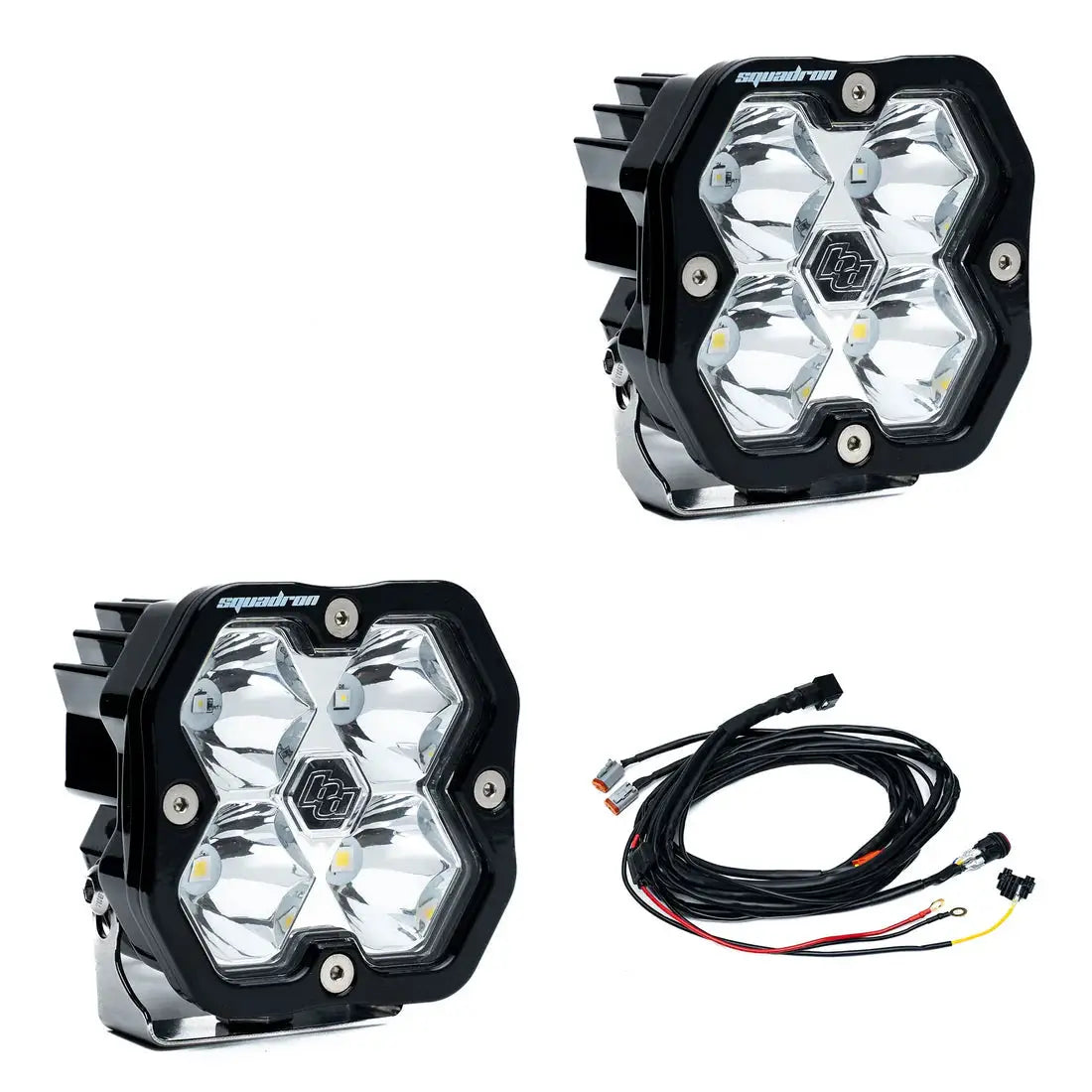

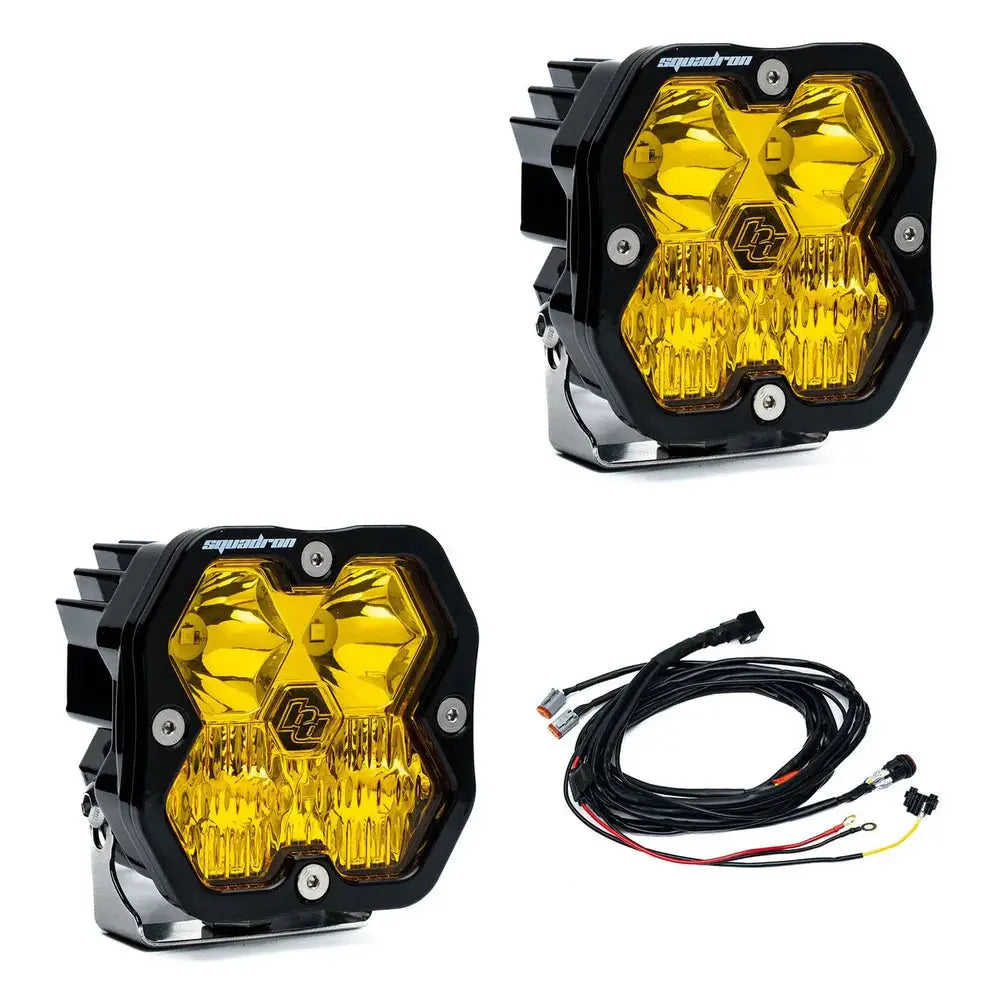

NET QUANTITY WHEN CHOOSING Harness Kits Includes:

• 2N Squadron 2.0 Sport Light Pods and mounting hardware
• 1N Wiring Harness


NET QUANTITY WITHOUT HARNESS Includes:

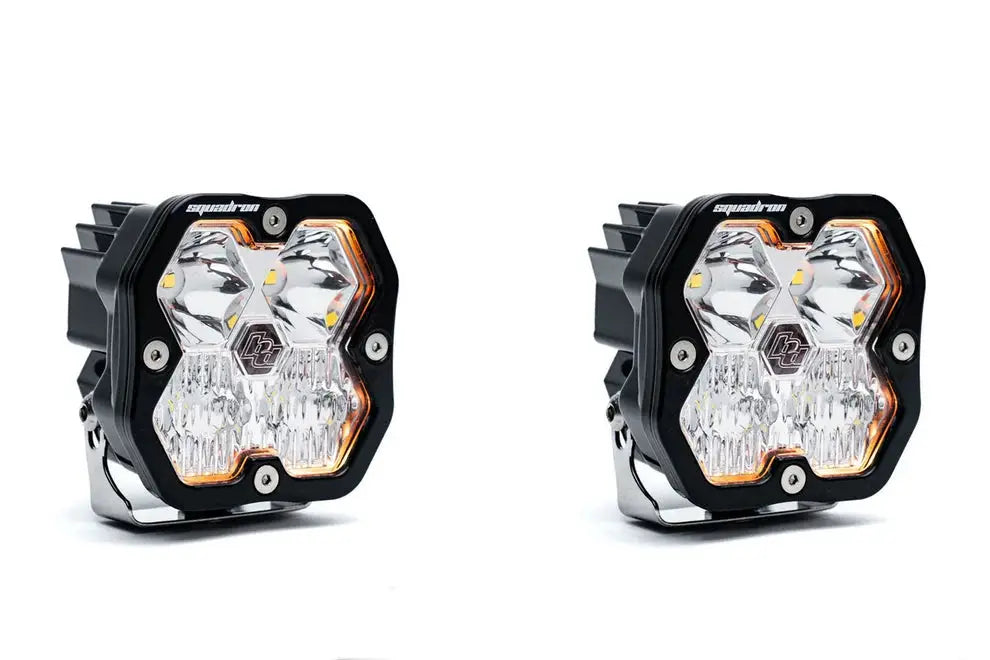

• 2N Squadron 2.0 Sport Light Pods and mounting hardware

Part No- 55-7801-2
